IPL hair removal machine

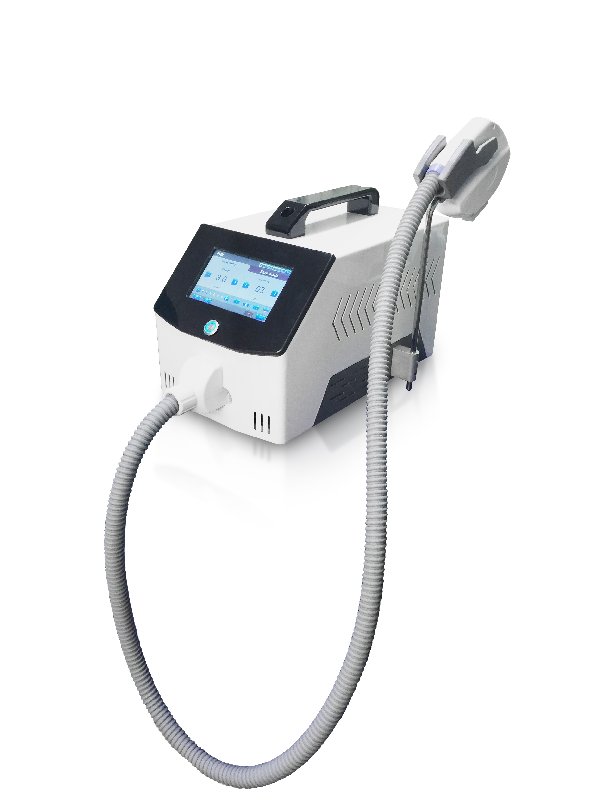

IPL Hair Removal Machine

working principle

Light-heat effect: Heat energy from intense pulsed light will be transmited through hair body to its bottom. The fast rising high temperature helps to destroy the hair bottom to make hair removal forever.

Energy stacking technology , FHR powered by high average power, low fluence ,and high repetition rate , gradually increasing the temperature of hair follicle by stacking the energy .

Application

Fast hair removal, Fast skin Rejuvenation, Pigmentation removal, Vascular removal.

Advantages

1. New designed handpiece, with spot size: 50mm*10mm;

2. The smallest volume of machine but with powerful energy generating system. Single OPT shot energy can reach 12j/cm2 even at the 5Hz repetition without any stop.

3. Touch LCD screen with 7". Online self checking system to ensure the safety.

4. Water cooling + Fans cooling + Semi conductor cooling systems! No need to stop the machine after working for hours. very comfortable customer treatment experience.

5. Bigger pump to have bigger water flow and reduce lamp temp more effectively.

6. OPT/SHR shot Frequency is 1~5Hz. Shots energy is 50j/cm2(max).

7. Imported Xneon lamp with 300,000 effective shots warranty.

Feature

1. More longer life-span of Lamp.

There are 2 ways for extending lamp life:

1)Improve the chamber reflectivity

Adopting silver for the reflection film because silver have more higher reflectivity than gold at the spectrum of 600-1200nm;

Imported lamp installed is more steady and more higher electric-photo conversion rate than than other local ones.

2)Improve lamp cooling. In the system water is the first cooling medium of lamp. So the water flow is very important for heat radiation. Now in the market, most of IPL system is less than 2.0L/min, but our SHR is improved to almost 2.5 times. Then the life of lamp is greatly extended. 1.5M shots have been reported by clients (but 300K shots/1 year for warranty).

2. More safety

1) On SHR mode, energy density which you could select on the screen is calibrated by the imported IPL energy meter. The date is showing the reality energy density.

2) Strictly control and real-time monitor the lamp input

A)keep flash pulse accuracy and give a real-time monitoring

B)Each energy step is controlled and real-time monitored.

3）Improve the cooling ability of the tip. Crystal of the spot could reach even -18 in 5 minutes. The potential skin thermal hazard is reduced a lot. And less pain feeling because enough low touch-temperature.

3. Easily operation

1）More intelligent system

Once start machine, the intelligent system will auto check all key specification and even auto lighten the lamp. Auto damaged parts could be recognized clearly by sensors system optimization. Make a great convenience in trouble shooting.

2）More ergonormic design of handpiece

After studying of Japanese epilation chains saloon，we optimized the handle to suit for each parts of body. It makes convenience for beautician operation and give more satisfy.

3）More intelligent IPL power supplier

Adjustment energy level and Frequency is smooth, have no order restriction, and also no need of “shot to the ground” procedure. That helps to reduce the beautician operation difficulty, improve the customer & beautician experience.

4）Automatic sleep and one-key wake mode helps to avoid cold gel curving, reduce operation difficulties.

4、High stable system

1）Matured industrial chips and components are selected to enhance the stability of control system;

2）Matured IPL power supplier and lamp are selected to reduce power supply problem which are often encountered in other system.

3）Optimize the plug-in&out of the handle; enhance the stability of the plug-in;avoid of the electricity leakage;

4）Many years full experience in IPL circuit design；Unique control system design ensure system stability.

Main Spare Parts

handpiece for hair removal/rejuvenation.

Spot size:50mm*10mm; 50mm*15mm for optional.

Spectra: 530nm/690nm.

warranty: 300K shots.

Specification

Screen: TFT 7"

Electricity prevention: 1 class BF type.

Rated input power supply: AC230V+/-10%,50Hz+/-1Hz/AC110V+/-10%,60Hz+/-1Hz.

Working mode: OPT.

Handpiece connection: Fast-connected.

Light source: Intense pulsed light.

Crystal: Imported sapphire.

Spectra: 420/490/530/560/610/690nm.

Spot size: 50mm*10mm; 50mm*15mm(Optional).

IPL energy density: 50j/cm2(max).

FHR and FSR luminous frequency: 1-5Hz, step 1.

Rated input power: 2500VA

Continuous light interval of HR and SR mode: 1~3s+/-10%, step 0.5.

Net weight: 18kg.

Gross weight: 20kg.

Physical dimension: 430mm*260mm*280mm.

Package: 56.5cm*49cm*45cm (Carton Box).
